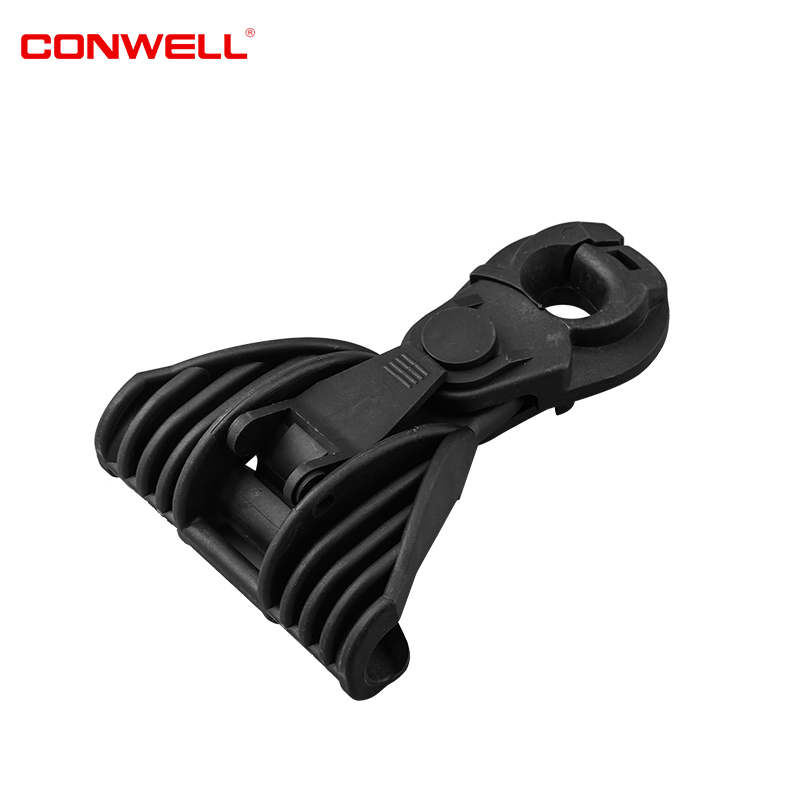

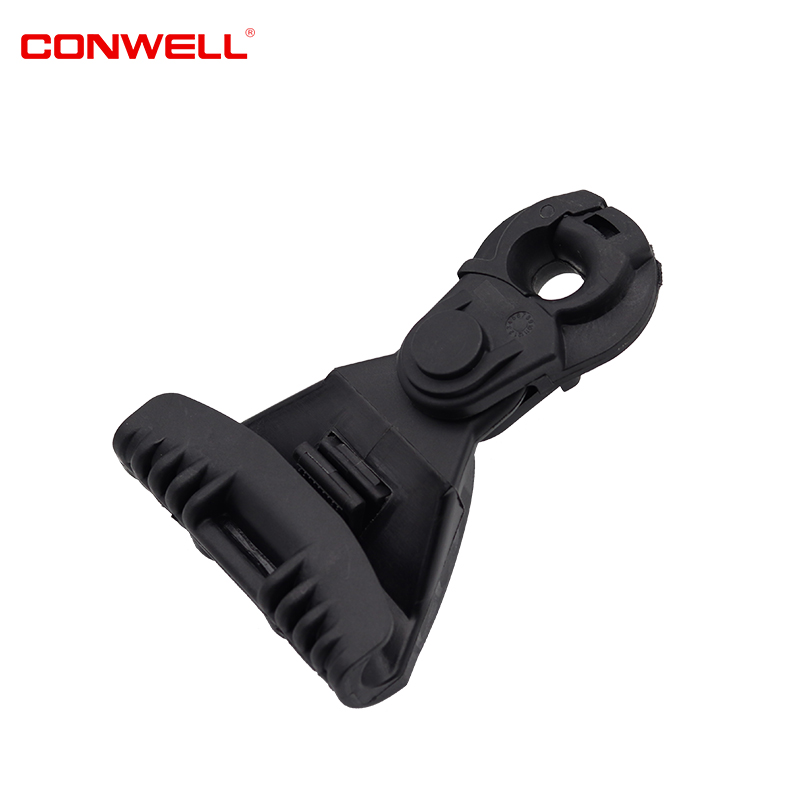

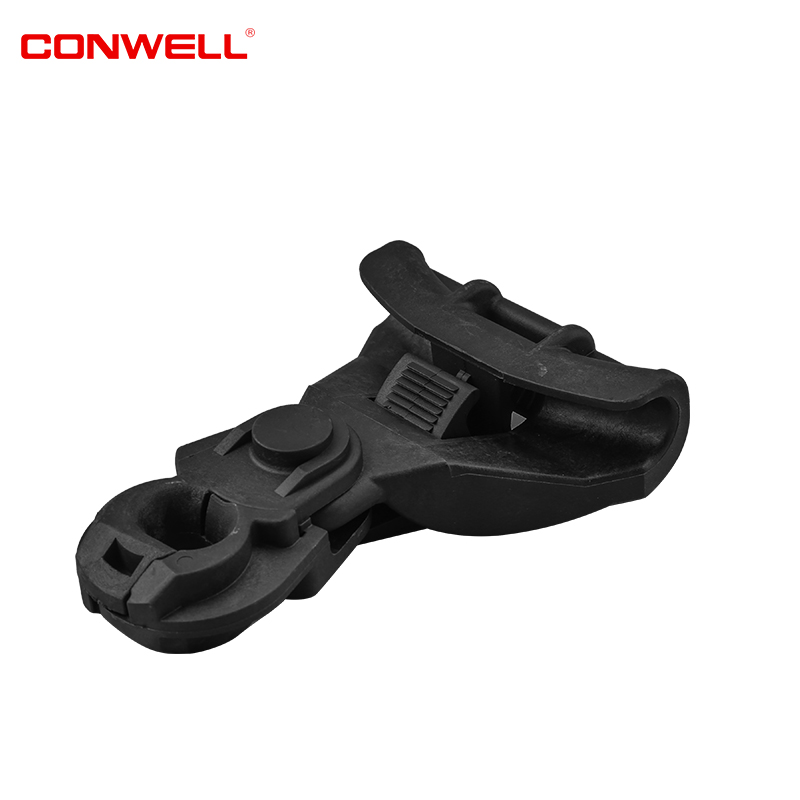

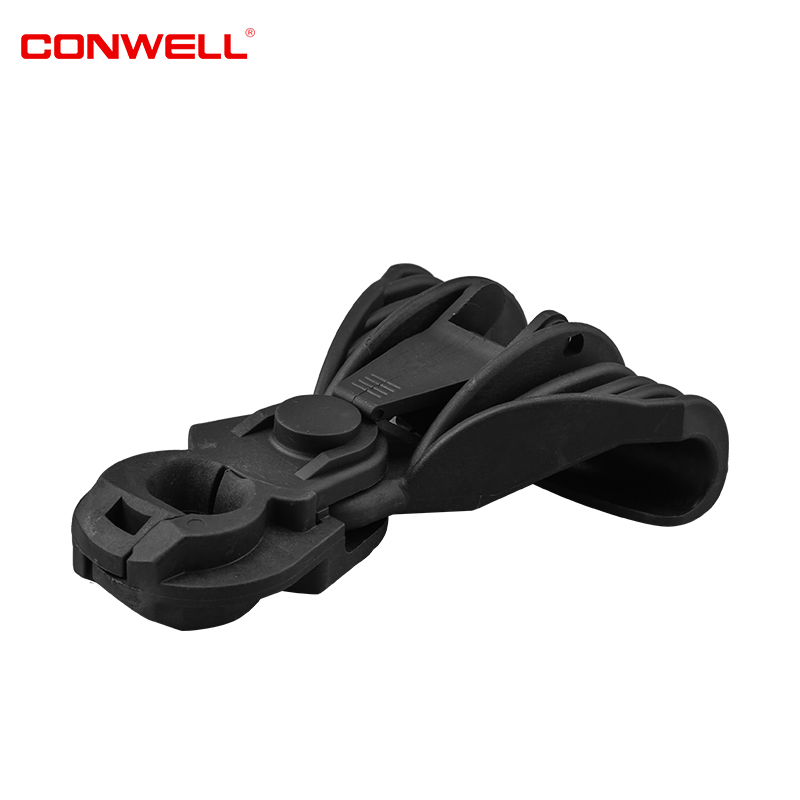

Suspension Clamp

Code: 1.1B
Name: Suspension Clamp
Cable Size: 16-95mm²

Description:For suspension of LV ABC cables in an insulated messenger wire system(IMWS). Suitable for every climatic conditions.

Technical Specification

Dimensions

Weight:204g

Cable Size:25-95mm²

Mechanical

Breaking Load:12KN

Specification

Construction:UV resistant plastic

Installation: Messenger wire is installed into the groove and locked with the locking part.

Tools required: No tools required

Standard:NFC 33-042; EN 50-483

Inner Package: 10pieces in inner bag

PCS/CTN: 100pcs

Carton Size: cm

G.W./N.W.: KGS
