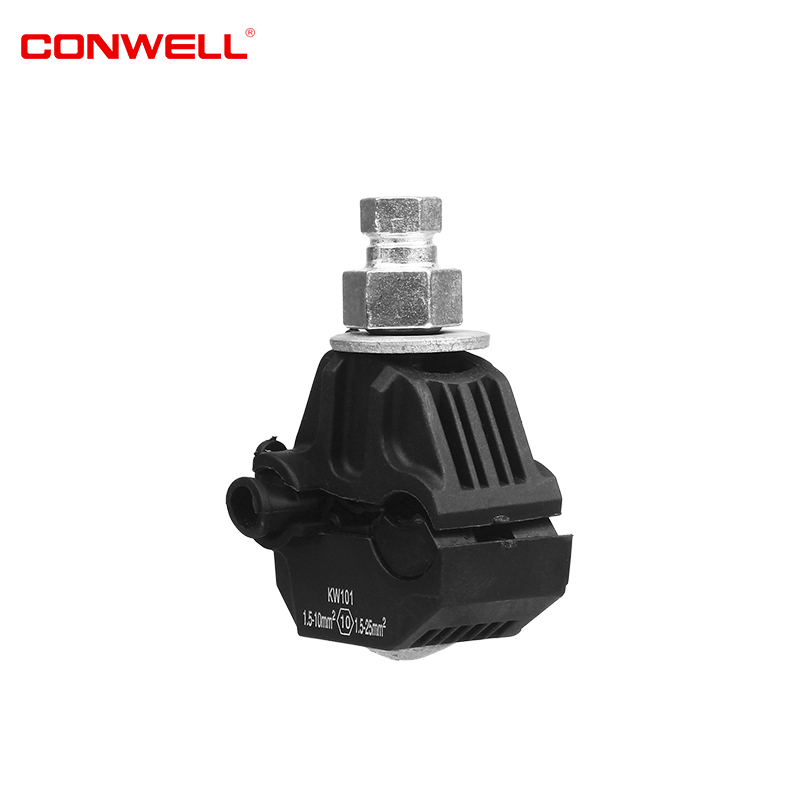

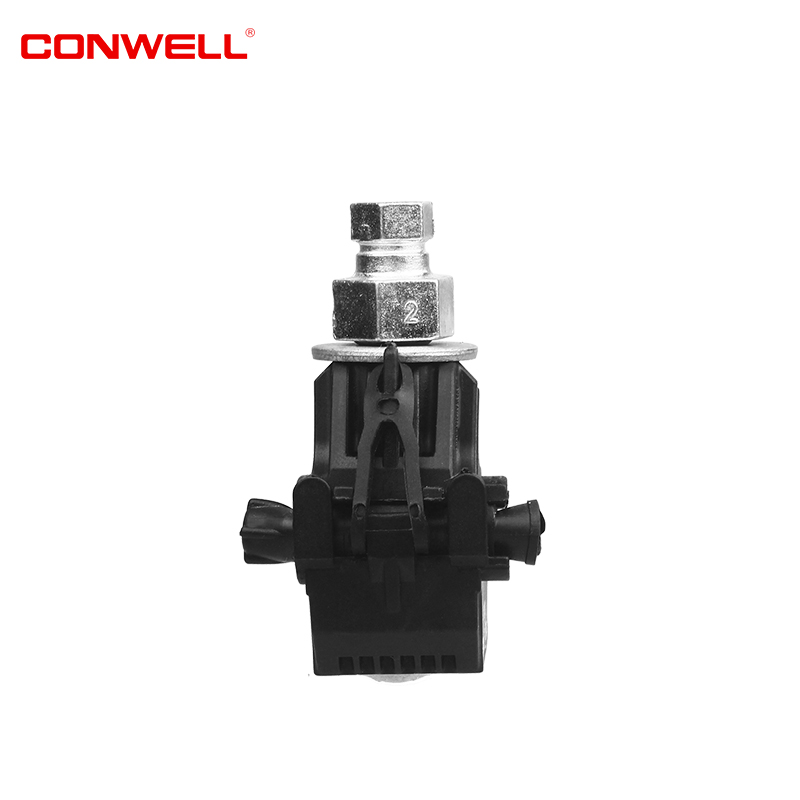

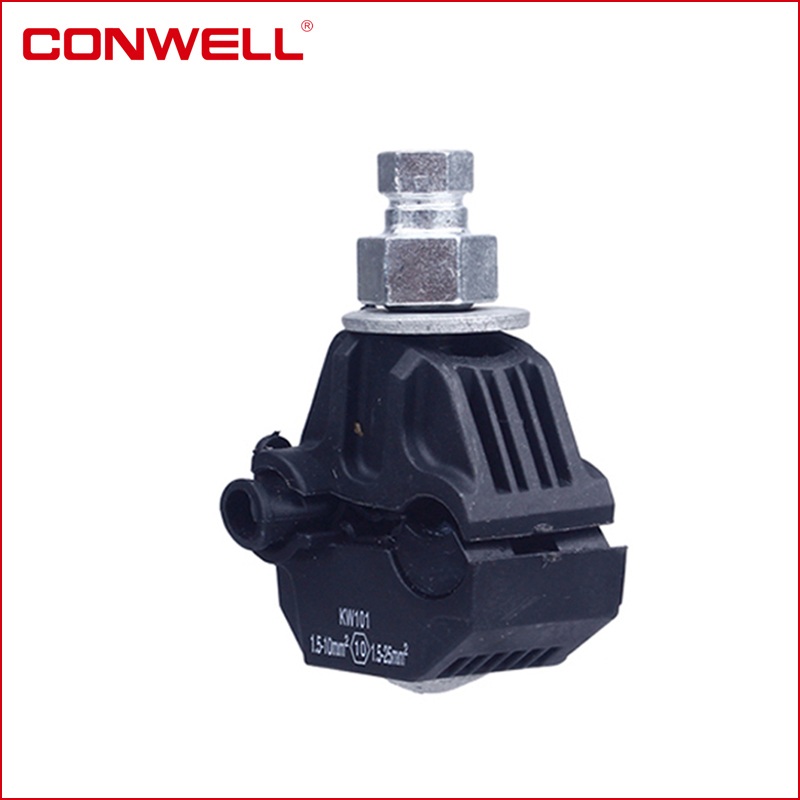

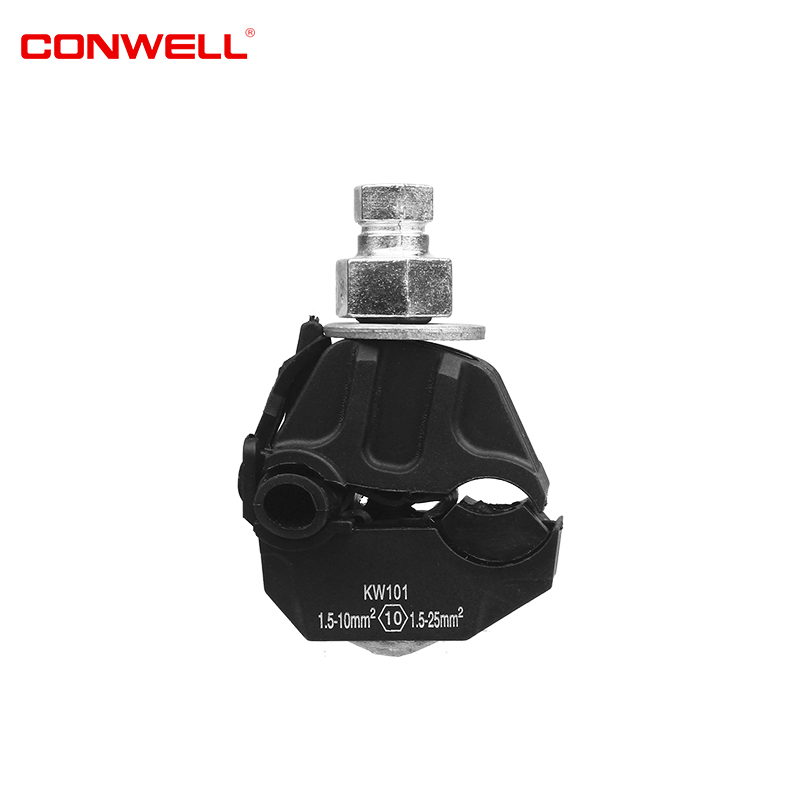

Insulation Piercing Connector

Code:KW101
Cable Size: 1.5-25 mm² to 1.5-10mm²

Description: The KW101 is used for all connections of insulated aluminum and copper main and branch conductors up to 1KV. The Design enables hot line installation.Equipped with shear head screw

Technical specification

Dimensions

Main Cable Line:

1.5-25mm²

Branch Cable Line:

1.5-10mm²

Norminal Current:

75A

Piercing Depth:

1.5-2mm

Weight:

58g

Features

Bolt:

M6*55

Mechnical

Tightening Torque:

10Nm

Normal Package

Inner Package: 20pieces in inner bag, 60pieces in inner box

PCS/CTN: 300pcs

Carton Size: 45.5*36*21cm

G.W./N.W.: 19/18KGS

Specific packaging can be made to order.
