Insulation Piercing Connector

Cable Size:16-95mm² to 4-50mm²
Description:The KW2-95 is used for all connections of insulated aluminum and copper main and branch conductors up to 1KV. The Design enables hot line installation.Equipped with shear head screw

Product Introduction

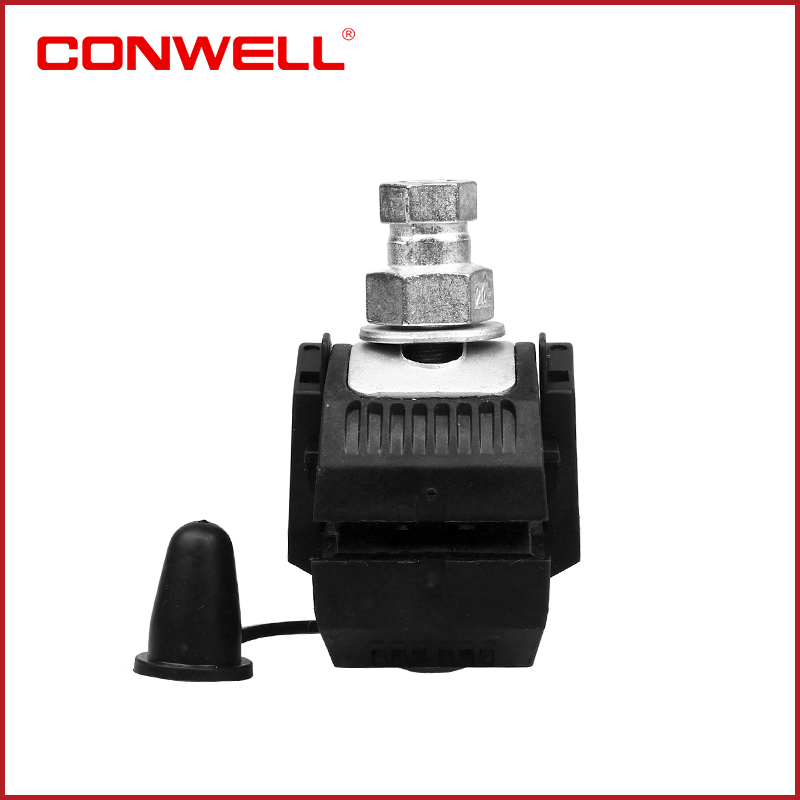

1kv Waterproof Insulation Piercing Connector KW2-95 for 16-95mm2 Aerial Cable
1. Product introduction of 1kv waterproof insulation piercing connector
CONWELL insulation piercing connectors is used for all AB cable systems (messenger wire and self-supporting systems) that accept a tap connection. This connection further distributes a line in street lighting and domestic utility connections. The design makes it possible to entirely seal the connection against water penetration, making it a waterproof connector.
We devoted ourselves to abc cable accessories more than 18 years ,cutting-edge technology, quality materials and continuous testing form the basis of CONWELL connectors. We are expecting become your long -term partner in China.

Product Parameter

Product Parameter of 1kv waterproof insulation piercing connector

Model KW2-95
Main line section 16~95mm²
Branch line section 4~50mm²
Torque 20Nm
Nominal current 157A
Bolt M8*1
Product Feature

Product Feature of 1kv waterproof insulation piercing connector
They have been designed for use on low voltage distribution networks and allows the installer to tap off from a cable already present, without removing any insulation. These insulation piercing connectors are waterproof and corrosion-proof.

Product Application

Product Application of 1kv waterproof insulation piercing connector
a) Insulated LV and HV lines with inter connectors provide promising insulation and robust strength for the terminal and adjacent ports.
b) To establish the connection between twisting LV network to service cables.
c) Street lights, tap off, distribution box charging, and jumper connections are the four principal applications for IPCs.
d) Also applicable in Low-voltage insulated household wire T connection; building power distribution system T connection; street lamp distribution system and ordinary cable field branch; underground power grid cable connection; line connections for lawn flower bed lighting.

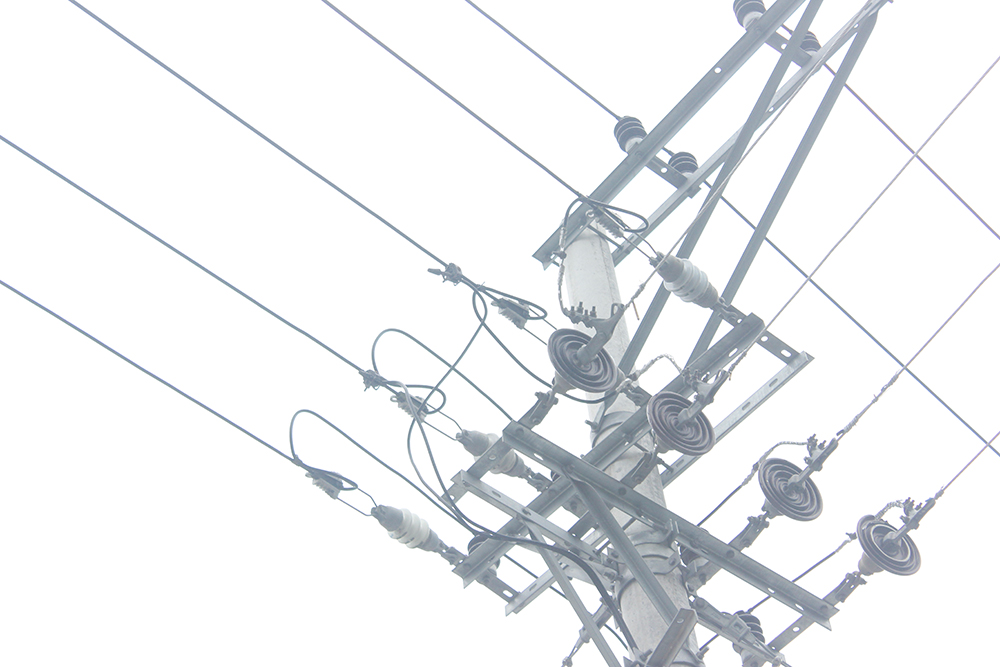

insulation piercing connector application

Technical specification


Main Cable Line:


Branch Cable Line:


Norminal Current:


Piercing Depth:








Tightening Torque:


Normal Package

Inner Package: 6pieces in inner bag, 24pieces in inner box

PCS/CTN: 120pcs

Carton Size: 45.5*36*21cm

G.W./N.W.: 17/16KGS

Specific packaging can be made to order.
