Code:CAPG
Name:Cu-Al Parallel Groove Clamp

Description:CAPG Cu-Al Parallel Groove Clamp is used for the Non-bearing connection and offset of aluminum stranded wire, aluminum stranded wire, it's used with insulating cover for the effect of protective and insulation.

Specification

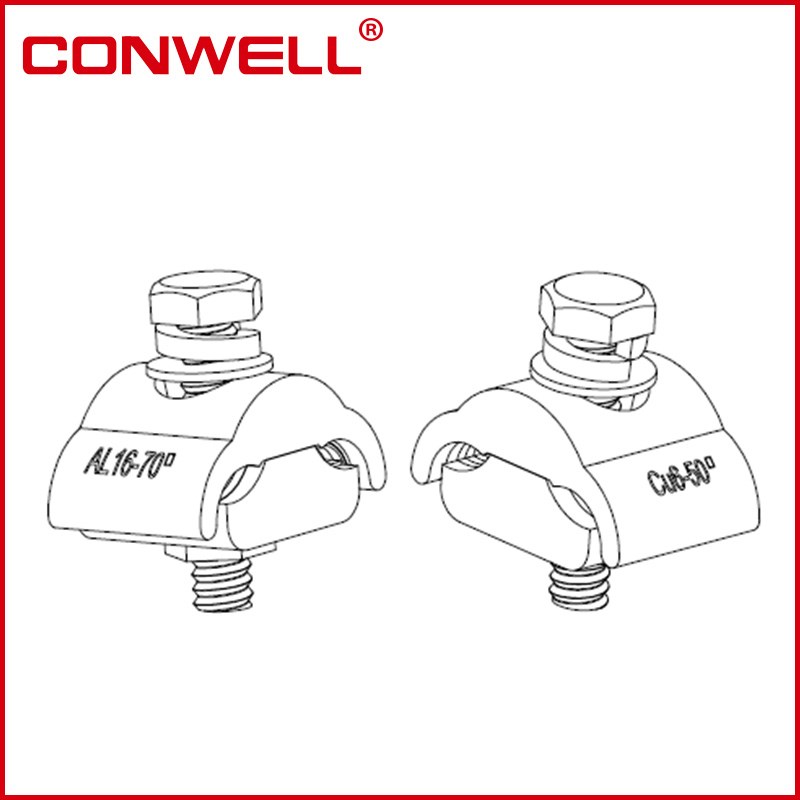

CAPG-A Drawing

Type

Conductor cross section(mm²)

Bolt

CAPG-A1

Cu 6-50 Al 16-70

1xM8x40

CAPG-A2

 Cu 10-95 Al 25-150

1xM8x45



CAPG-B Drawing

Type

Conductor cross section(mm²)

Bolt

CAPG-B1

 Cu6-50  Al 16-70

2xM8x45

CAPG-B2

Cu 10-95  Al 25-150

2xM8x50

CAPG-B3

Cu 25-185   Al 35-200

2xM10x60



CAPG-C Drawing

Type

Conductor cross section(mm²)

Bolt

CAPG-C1

Cu6-50   Al 16-70

3*xM8x45

CAPG-C2

Cu10-95   Al 25-150

3xM8x50

CAPG-C3

 Cu25-185   Al 35-240

3xM10x60

CAPG-C4

Cu35-240   Al 35-300

3xM10x70
