JXD Wedge Clamp

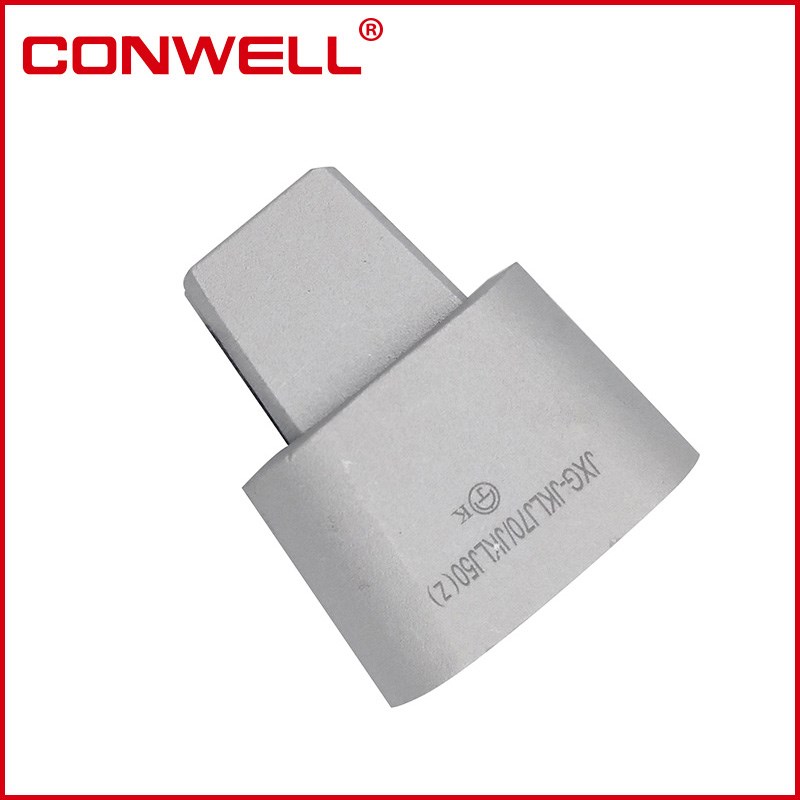

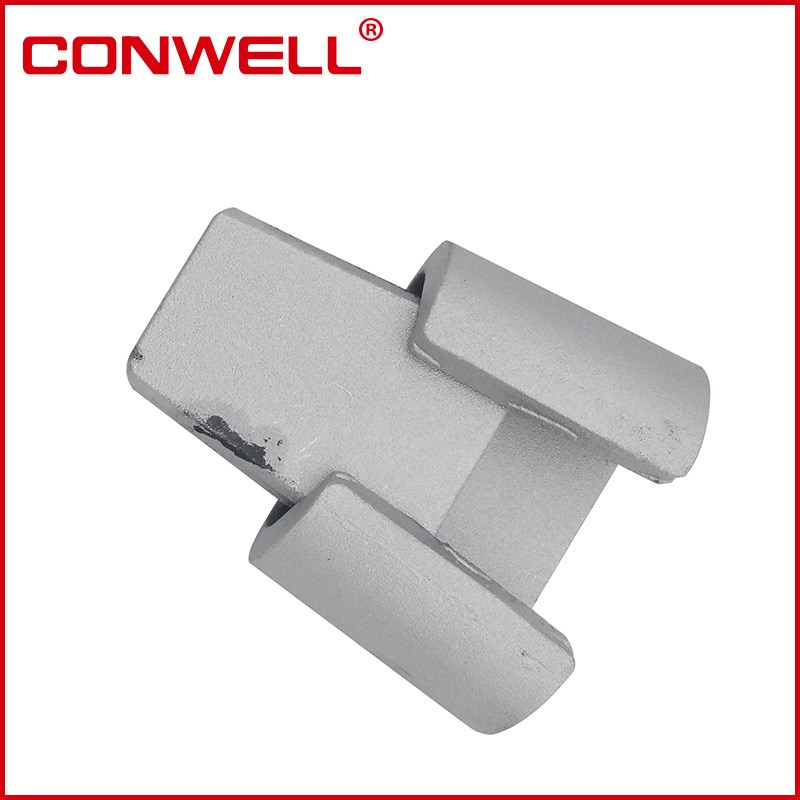

Name:JXD Wedge Clamp
Description:JXD Series clamp(wedge type) is suitable for non-load bearing splicing or branching of insulated aluminum wire or ACSR in overhead power distribution lines. Insulation covers and clamps are used together to play insulating and protective functions.

Performance Feature

1.   Non magnetic material, no magnetic hysteresis loss.

2.   Wedges elastic fastening, reliable splicing.

3.   Suitable for different combination of wires, strong applicability.

Specification

Type

Main Line(mm²)

Branch Line(mm²)

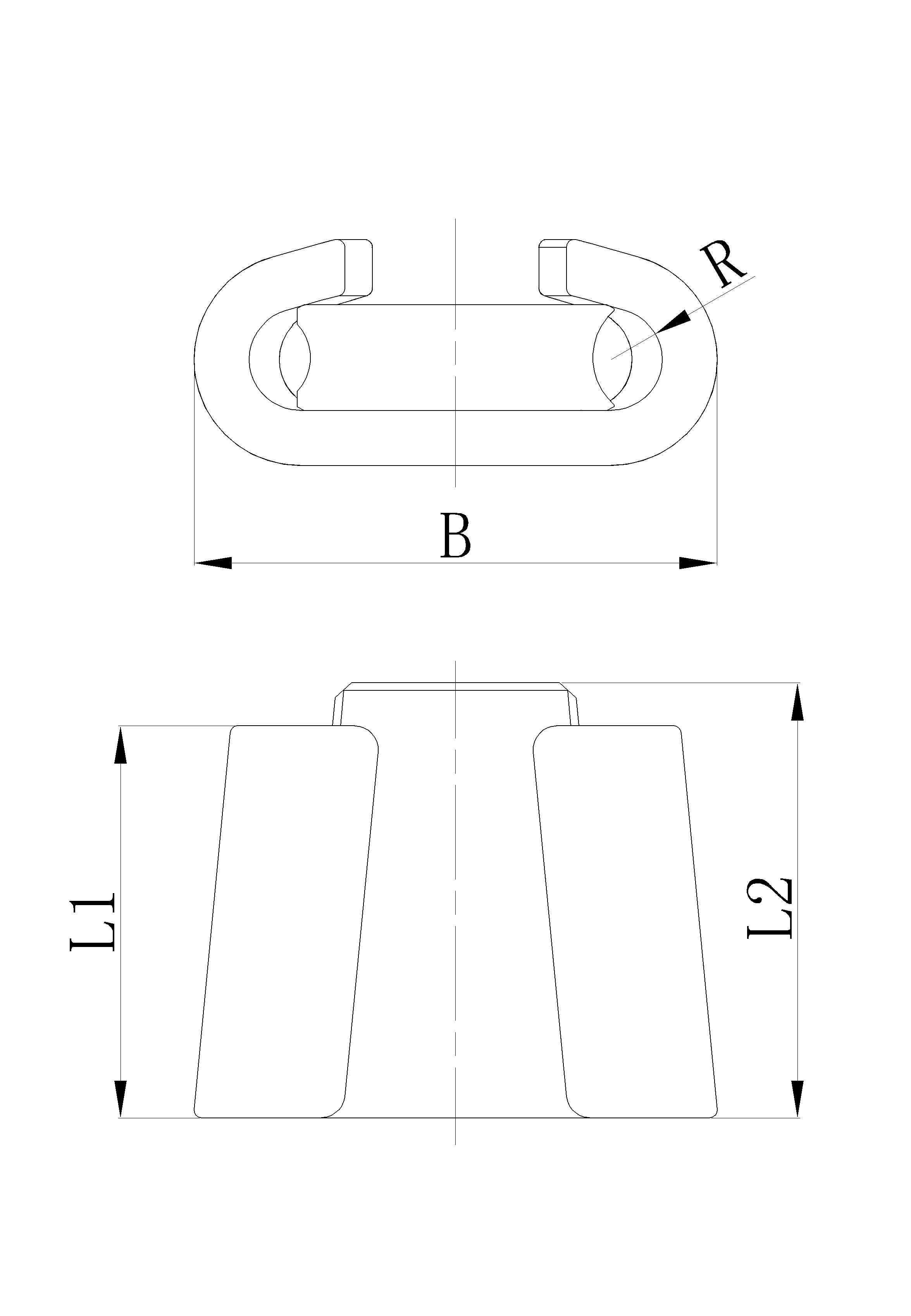

Product Size(mm)

L

L1

R

JXD-1

16-120

16-120

42

50

7

JXD-2

150

16-150

50

56

8

JXD-3

185

16-185

76

86

10

JXD-4

240

16-240

75

86

12
