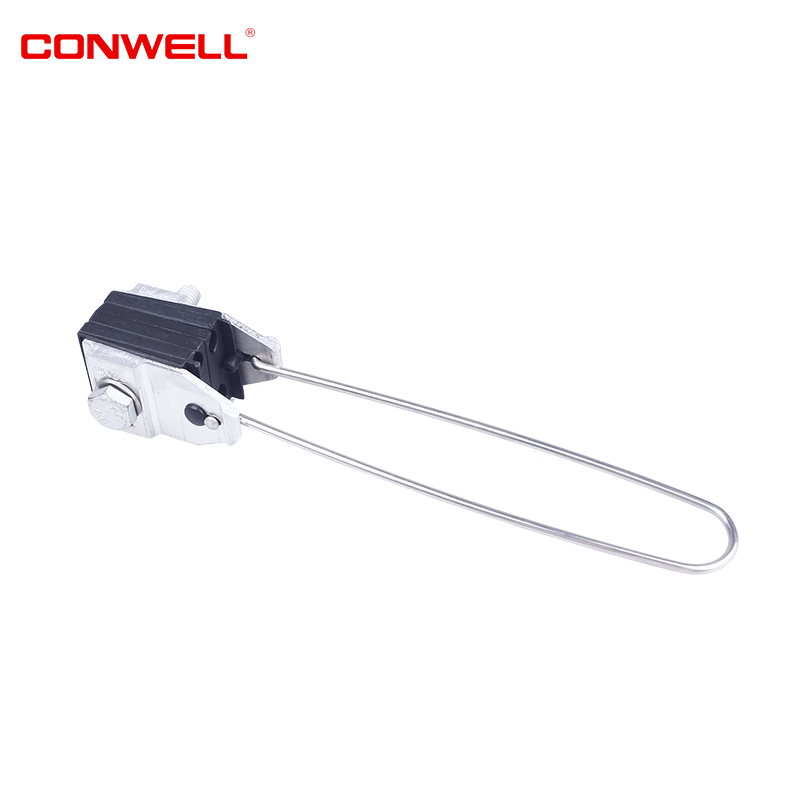

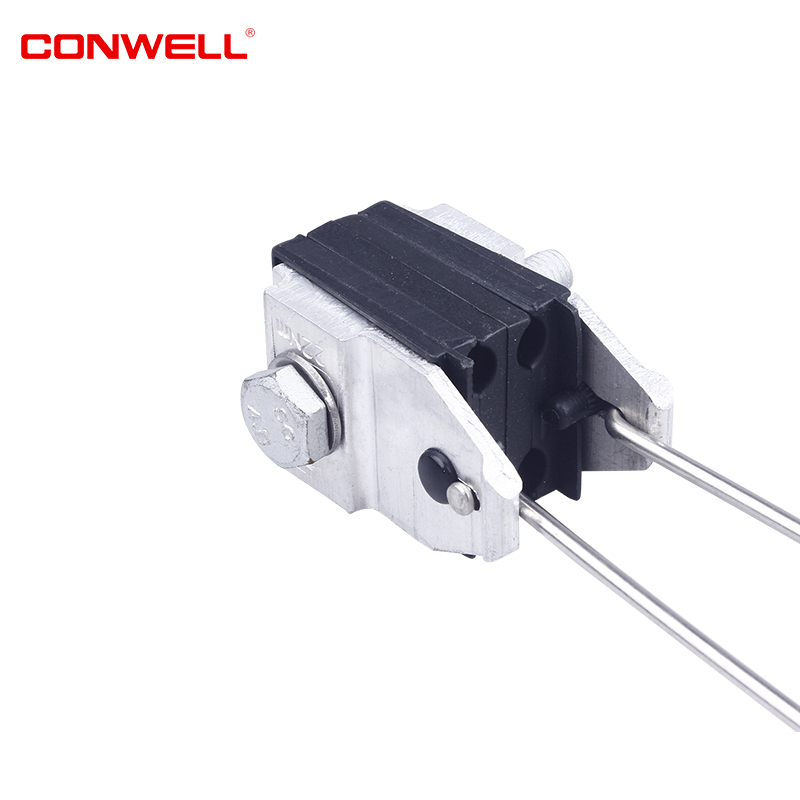

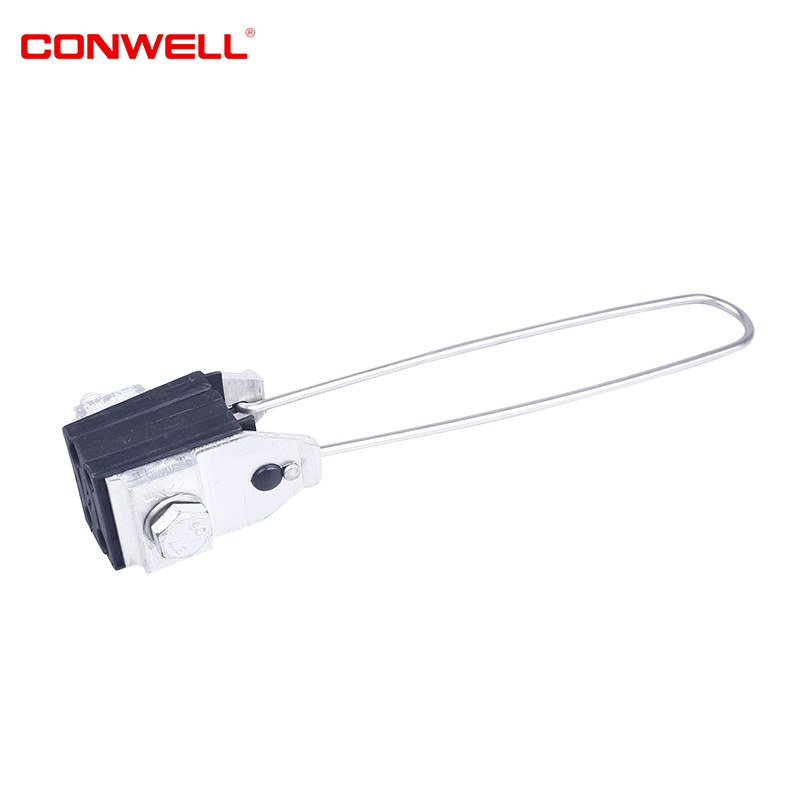

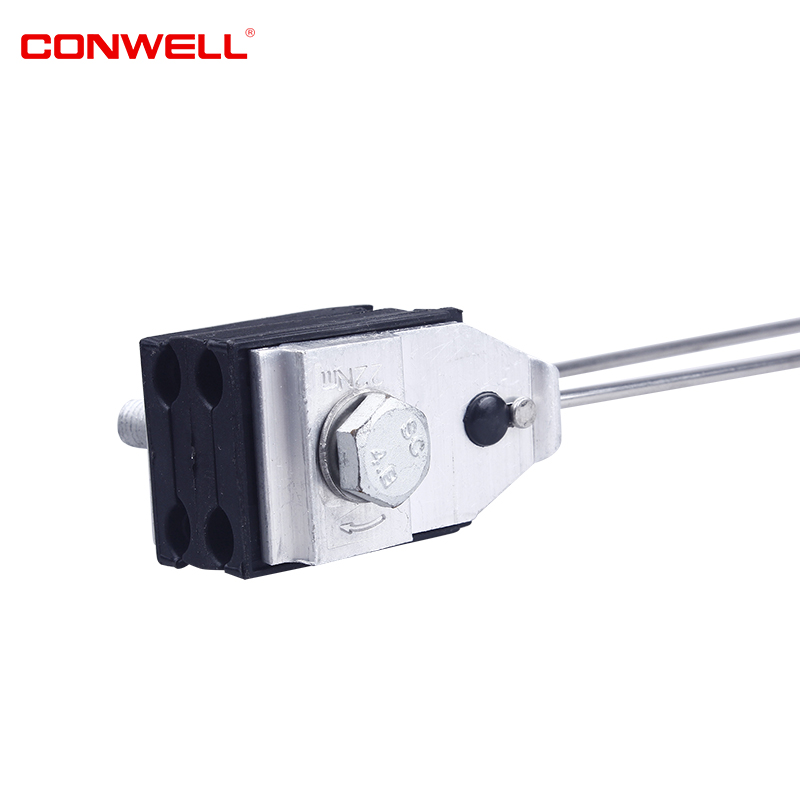

Description:PA4/35 is used for the anchoring of a 4-core overhead cable to poles or walls by means of standard hooks.
Technical Specification
|
Dimension |
||
|
Cable Size: |
4*16-35mm² |
|
|
Mechanical |
||
|
Breaking Load |
7kN |
|
|
Specification |
||
|
Use: |
Used for the termination of 4 core overhead cable to poles or walls by means of standard hooks. |
|
|
Construction |
Component |
Material |
|
Body |
Corrosion proof aluminum alloy |
|
|
Bolt |
Hot-dip galvanized steel |
|
|
Plastic Parts |
Frost, heat and UV-radiation resistance plastic |
|
|
Bail |
Hot-dip galvanized steel |
|
|
Installation |
Open the screw and put conductors into grooves.Tighten the shear head nut. |
|
|
Standard |
NFC 3-041; EN 50-483 |
|
Inner Package: 10pieces in inner bag
PCS/CTN: 100pcs
Carton Size: cm
G.W./N.W.: KGS
